Blister Packing Machine

Introduction to Blister Packing Machine

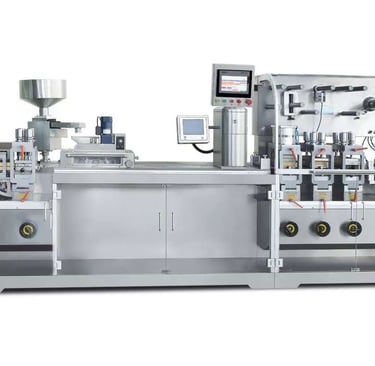

A blister packing machine is a crucial piece of equipment in the packaging industry.

I. Definition and Purpose

1. Definition

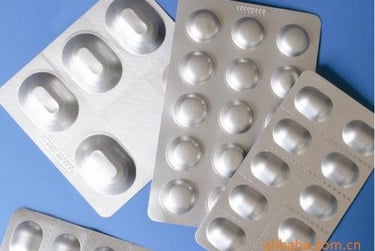

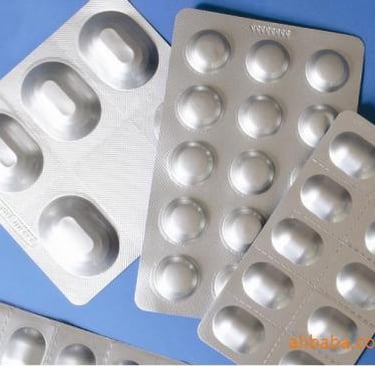

- A blister packing machine is designed to enclose products within a blister, which is a pre - formed plastic cavity, and seal it with a backing material, typically a lidding film. The blister is usually made of thermoformed plastic, such as PVC (polyvinyl chloride), PET (polyethylene terephthalate), or PP (polypropylene).

2. Purpose

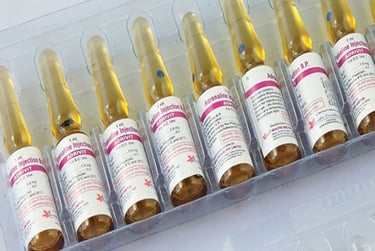

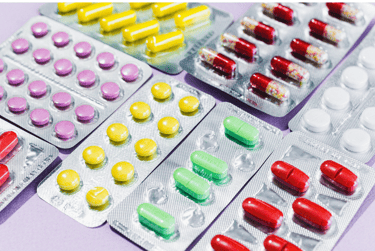

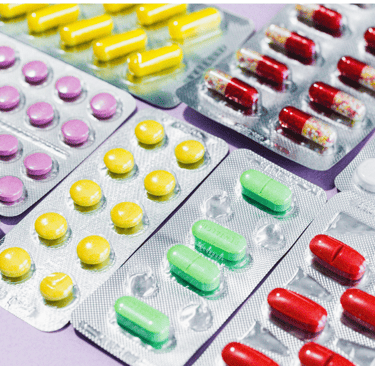

- Product Protection: It provides a protective enclosure for a wide variety of items, ranging from pharmaceuticals (such as tablets and capsules) to small consumer goods (like electronics components, toys, and cosmetics). The blister protects the product from physical damage, moisture, and contamination.

- Visibility: One of the key advantages is that it offers excellent product visibility. Consumers can easily see the product inside the blister, which is especially important for products where appearance or identification is crucial, like branded pharmaceuticals or high - end consumer items.

- Tamper - Evidence: Blister packs can be designed to be tamper - evident. Once the blister is sealed, any attempt to open it without breaking the seal is visible, ensuring the integrity of the product and providing reassurance to consumers.

II. Working Principle

1. Thermoforming

- In the first stage, for blisters made from thermoformable plastics, the machine heats a plastic sheet to a pliable state. Then, using a mold, it forms the blister shape. The mold can be designed to create blisters of different sizes and shapes depending on the product to be packaged.

2. Product Loading

- After the blister is formed, the product is placed into the blister cavities. This can be done either manually for small - scale or specialized production, or automatically using robotic or mechanical feeders in high - volume production lines.

3. Sealing

- Once the product is in place, a lidding film is placed over the blisters. The machine then applies heat and pressure to seal the lidding film to the blister, creating a hermetic or semi - hermetic seal. The sealing process ensures that the product is securely enclosed within the blister - lidding combination.

III. Types of Blister Packing Machines

1. Manual Blister Packing Machines

- These are suitable for low - volume production or for products that require special handling. They are relatively simple in design and operation, often relying on an operator to perform tasks such as loading the product, placing the lidding film, and initiating the sealing process.

2. Semi - Automatic Blister Packing Machines

- These machines automate some of the processes, such as blister forming and sealing, while still requiring some human intervention for product loading. They are a good option for medium - volume production where cost - effectiveness and flexibility are important.

3. Automatic Blister Packing Machines

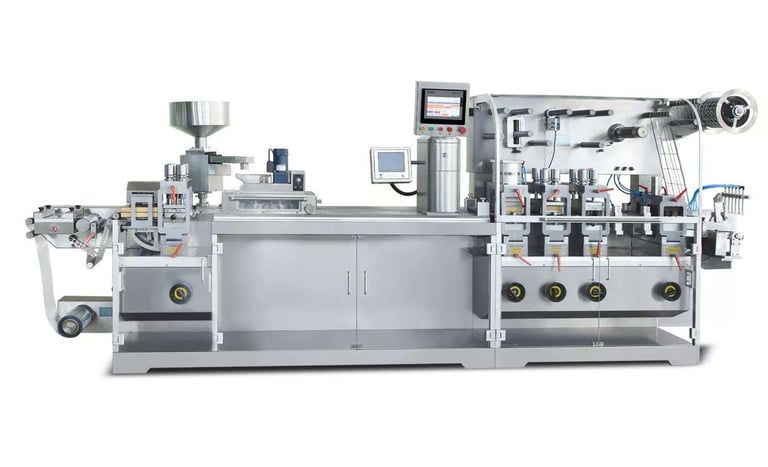

- Designed for high - volume production, these machines can perform all the processes from blister forming, product loading (using advanced feeding systems), to sealing without significant human intervention. They are often integrated into larger production lines and can achieve high production speeds while maintaining consistent quality.

In conclusion, the blister packing machine plays a vital role in modern packaging, offering a combination of protection, visibility, and efficiency for a diverse range of products.
